ZEBRONICS Zeb H110-D4 MicroATX Motherboard LGA 1151 Socket DDR4

Description

ZEBRONICS Zeb H110-D4 MicroATX Motherboard LGA 1151 Socket DDR4

The Zebronics Zeb H110-D4 MicroATX Motherboard is an affordable yet high-performance motherboard designed for users looking to build or upgrade their system. Featuring the LGA 1151 socket, it is compatible with Intel 6th and 7th generation Core processors, offering solid performance for everyday computing tasks. With its MicroATX form factor, the Zeb H110-D4 is compact, fitting into a wide variety of cases without sacrificing essential features and connectivity options.

This motherboard supports DDR4 RAM, allowing for faster and more efficient multitasking compared to older memory technologies. Whether you’re building a budget-friendly office PC, home theater system, or a light gaming setup, the Zeb H110-D4 ensures reliable and stable performance. The Intel H110 chipset and versatile I/O ports, including USB 3.0, SATA III, and HDMI support, make it a solid choice for users seeking a practical and dependable solution. Additionally, with a 5-year warranty, Zebronics guarantees peace of mind for long-term use.

Specifications

• Brand: Zebronics
• Model: Zeb H110-D4
• Socket Type: LGA 1151
• Chipset: Intel H110
• Form Factor: MicroATX (244mm x 244mm)
• Memory Support:
  • 2 x DDR4 DIMM slots
  • Maximum RAM: 32GB
• Supported Processors:
  • Intel 6th and 7th Gen Core (i7, i5, i3)
  • Intel Pentium and Celeron processors
• Storage:
  • 4 x SATA III (6Gb/s) ports
  • 1 x M.2 slot (for high-speed SSDs)
• Expansion Slots:
  • 1 x PCIe x16 (for graphics card)
  • 2 x PCIe x1 (for expansion cards)
• USB Ports:
  • 2 x USB 3.0 (rear)
  • 4 x USB 2.0 (2 rear, 2 internal)
• Audio:
  • Realtek ALC887 high-definition audio codec
  • 6-channel audio output
• Networking: 1 x Gigabit Ethernet port (RJ45)
• Display Outputs:
  • 1 x HDMI (up to 4K resolution)
  • 1 x VGA
• Power Connectors:
  • 24-pin ATX power connector
  • 4-pin CPU power connector

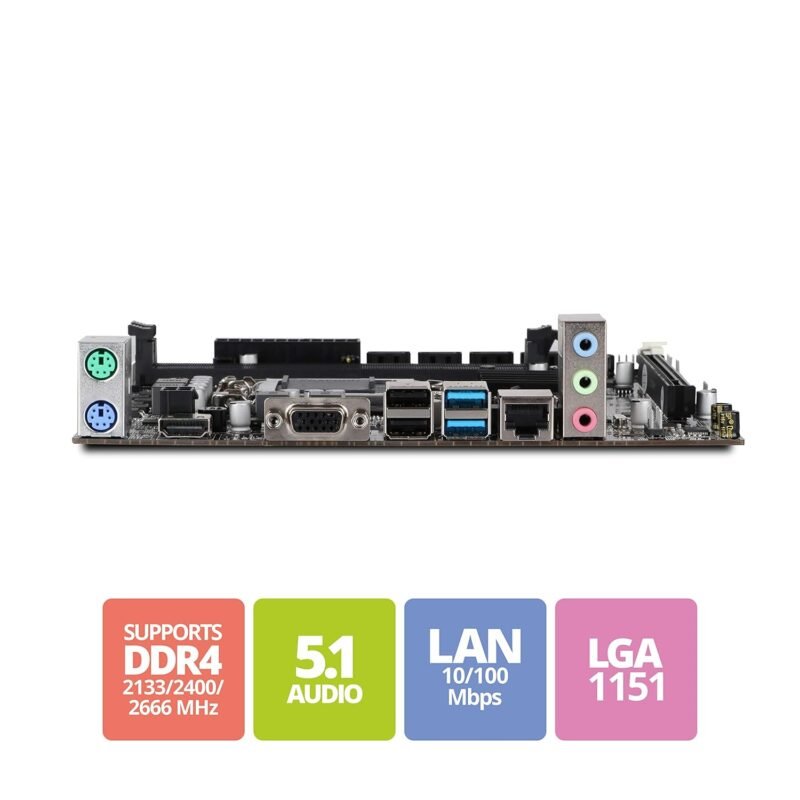

• Rear I/O Ports:
  • 1 x VGA
  • 1 x HDMI
  • 2 x USB 3.0
  • 4 x USB 2.0
  • 1 x RJ45 LAN port
  • 3 x Audio jacks (Mic, Line-in, Line-out)
• Warranty: 5 Years
• Operating Temperature: 0°C to 55°C
• Dimensions: 244mm x 244mm
• Weight: 0.5 kg (approx.)

Additional Features

• Energy-Efficient Design: The motherboard’s power-efficient design ensures lower electricity consumption, reducing the overall environmental impact of your system.
• Easy Setup: Perfect for beginners and experienced builders, with user-friendly BIOS setup and simple installation of components.
• Compact Build: The MicroATX form factor allows for easy installation in smaller cases, saving space while offering all the necessary features.
• Long-Term Reliability: With a 5-year warranty, you can count on stable and reliable performance for years to come.

The Zebronics Zeb H110-D4 MicroATX Motherboard is a feature-packed, cost-effective choice for building a functional and efficient PC. Its compact design, support for modern memory, and versatile connectivity options make it a reliable foundation for a wide range of home or office computing needs. Whether you’re upgrading an existing system or building a new one, this motherboard offers excellent value with long-term reliability.
