Description

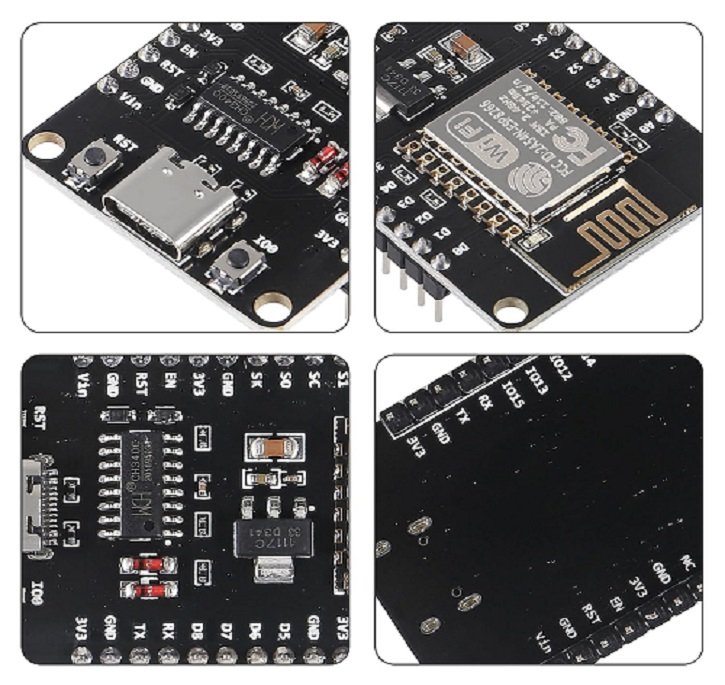

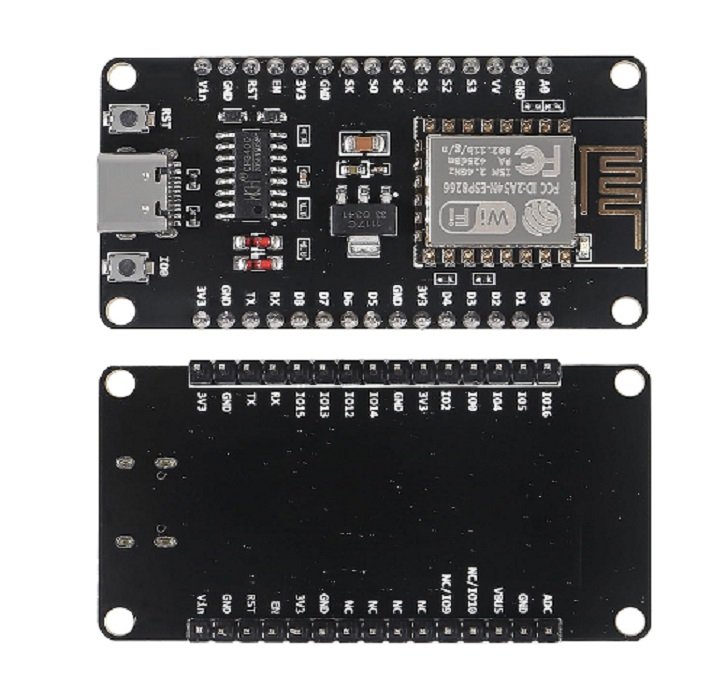

The NodeMCU LUA Wi-Fi Development Board is a powerful, low-cost IoT platform based on the ESP8266 Wi-Fi microcontroller. It comes pre-flashed with the NodeMCU firmware, allowing you to write code in LUA or Arduino IDE for rapid development of Wi-Fi-enabled applications.
Equipped with the CH340 USB-to-Serial chip, this board provides reliable USB connectivity for programming and communication. Its compact, breadboard-friendly design makes it ideal for IoT projects, automation, remote sensing, and wireless control.
Features:
ESP8266-12E Module: Integrated Wi-Fi SoC with 32-bit RISC CPU and TCP/IP stack.
Built-in USB Interface (CH340): Provides easy programming via USB without external programmer.
Pre-Flashed with NodeMCU Firmware: Ready to use with LUA scripting or Arduino IDE.
NODE MCU LUA WIFI INTERN. BASED ESP8266 CH340

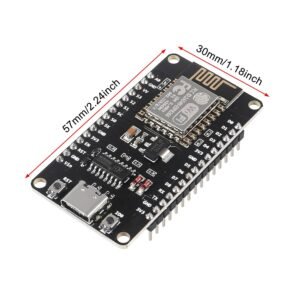

Breadboard Friendly: Standard 30-pin layout fits easily into most breadboards.
Wi-Fi Connectivity: Supports AP, STA, and AP+STA modes for flexible wireless communication.
Specifications:
Power input: 4.5V ~ 9V (10VMAX), USB-powered
Transfer rate: 110-460800bps Support UART / GPIO data communication interface
Support Smart Link Smart Networking Working temperature: -40°C ~ + 125°C
Drive Type: Dual high-power H-bridge Don’t need to download resetting
A great set of tools to develop ESP8266 Flash size: 4MByte Lowest cost WI-FI
