MAX7219 DOT LED Matrix Module With Cable M7219

Description

MAX7219 DOT LED Matrix Module With Cable M7219

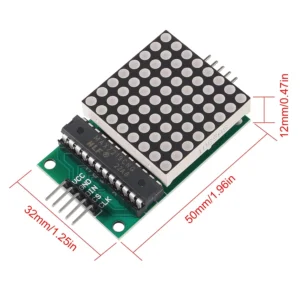

The MAX7219 Dot LED Matrix Module features 8×8 LED’s, each controlled very precisely by the MAX7219 driver to generate the colour pattern you wish. The great advantage of using this is users will have control over all of the 64 LED by just connecting 3 output communication wires to microcontrollers like Arduino etc.

The MAX7219 is an integrated serial input / output common-cathode display driver, it is connected to a microprocessor with 8-digit 7-segment digital LED display can also be connected to the bar graph display or 64 separate LED. On B BCD encoder including an on-chip, multi-channel scanning loop word drive, but also an 8 x 8 static RAM is used to store each data. Only one external register is used to set the current of each LED segment.

A convenient four-wire serial interface can connect all general-purpose microprocessor. Each data can be addressed in the update does not need to rewrite all the display. MAX7219 also allows the user to select on each data coding or non-coding.

The entire device contains a 150μA low-power shutdown mode, analogy and digital brightness control, a scan-limit register allows the user to display the 1-8 bits of data, as well as a let all LED light detection mode.
