Description

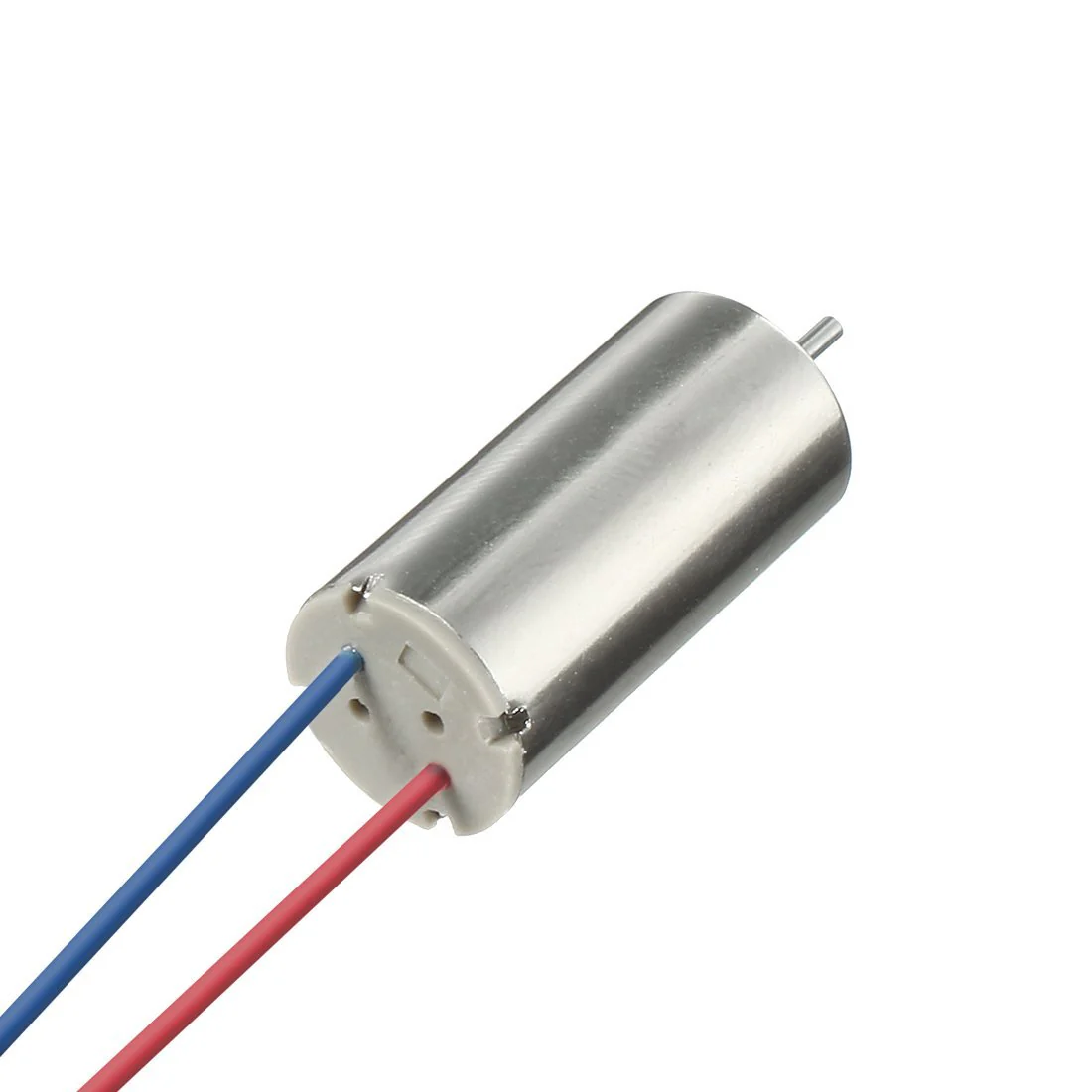

DC 4.2V 612 6x12mm Micro Coreless Motor (pack of 2)
The DC 4.2V 612 Micro Coreless Motor is a compact, lightweight, and high-speed motor designed for precision-driven applications. With its coreless design and efficient 6x12mm build, this motor delivers high RPM with minimal vibration and power consumption. It’s an ideal choice for drones, robotics, RC toys, medical devices, and micro-mechanical systems where size, efficiency, and speed matter.
Key Features:
- Coreless Design:
Provides higher efficiency, lower inertia, and smoother operation compared to traditional motors. - Low Voltage Operation:
Operates effectively at 3.7V to 4.2V DC, suitable for battery-powered devices. - High Speed & Performance:
Offers rapid rotation speeds (up to ~50,000 RPM unloaded), ideal for high-speed micro applications. - Ultra-Compact Size:
Only 6mm in diameter and 12mm in length—perfect for tight spaces and miniaturized systems. - Low Noise & Vibration:
Quiet operation, even at high RPMs, making it ideal for sensitive applications like medical instruments. - Lightweight Build:
Weighs only a few grams, ensuring minimal impact on device balance or weight. - Easy to Integrate:
Comes with pre-soldered wires or open terminals for quick and easy connection.
Specifications:
| Specification | Details |
|---|---|
| Model | 612 Coreless DC Motor |
| Voltage Range | 3.7V – 4.2V DC |
| Recommended Voltage | 4.2V DC |
| Motor Type | Brushed Coreless DC Motor |
| Size (Diameter x Length) | 6mm x 12mm |
| Shaft Diameter | Approx. 0.8mm – 1mm (varies) |
| No-Load Speed | ~50,000 RPM @ 4.2V (approximate) |
| Current (No Load) | 30 – 70mA (approximate) |
| Weight | ~1.5g |
| Wire Leads | Optional with 30mm–50mm length |
| Mounting Type | Free shaft or with optional mounts |
Applications:
- Micro drones and quadcopters
- Miniature robotics and actuators
- RC helicopters, planes, and cars
- Medical and lab instruments
- DIY electronics and Arduino projects
