TOY MOTOR (130) MOT

Description

TOY MOTOR (130) MOT

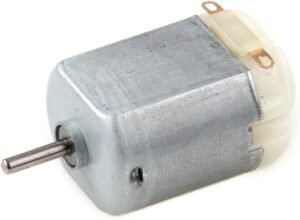

1. These are standard ‘130 size’ DC hobby motors.
2. They come with a wider operating range than most toy motors: from 4.5 to 9VDC instead of 1.5-4.5V.
3. This range makes them perfect for controlling with an Adafruit Motor Shield, or with an Arduino where you are more likely to have 5 or 9V available than a high current 3V setting.
4. They’ll fit in most electronics that already have 130-size motors installed and there’s two breadboard-friendly wires soldered on already for fast prototyping.
5. Operating Temperature: -10°C ~ +60°C Rated Voltage: 6.0VDC Rated Load: 10 g*cm No-load Current: 70 mA max No-load Speed: 9100 ±1800 rpm Loaded Current: 250 mA max Loaded Speed: 4500 ±1500 rpm Starting Torque: 20 g*cm Starting Voltage: 2.0 Stall Current: 500mA max Body Size: 27.5mm x 20mm x 15mm Shaft Size: 8mm x 2mm diameter Weight: 17.5 grams
