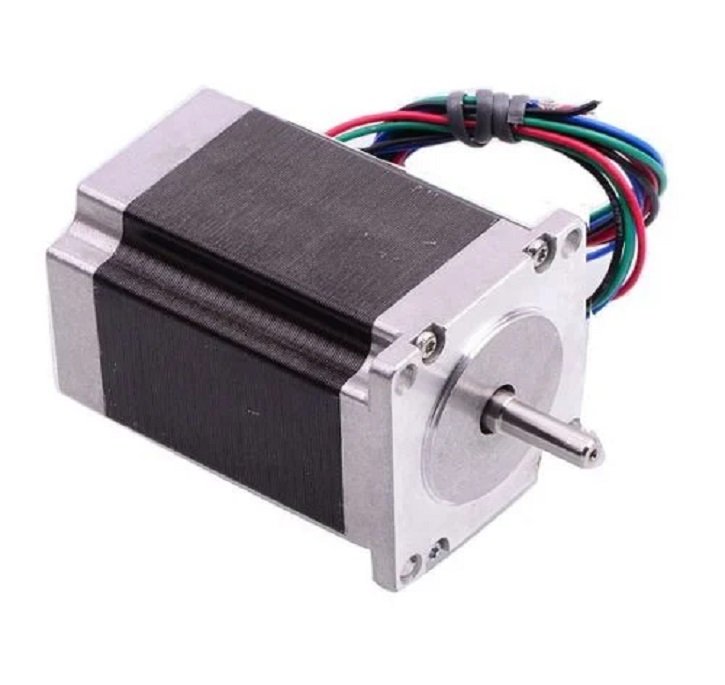

STEPPER MOTOR NEMA23 76MM 18.9 KGCM MOTS23B

The NEMA 23 Stepper Motor is a high-performance, robust stepper motor designed for precision control applications. With a compact 76mm frame size and a torque rating of 18.9 kg·cm, this motor is ideal for applications requiring high torque and precise positioning, such as 3D printers, CNC machines, robotics, and more. This motor delivers reliable performance in demanding environments, providing a smooth and accurate motion for various mechanical systems.

Features:

• High Torque Output: Delivers 18.9 kg·cm (approximately 264 oz·in) of holding torque, making it suitable for heavy-duty applications.
• Standard NEMA 23 Frame: The 76mm (2.99 inch) frame size is compatible with a wide range of mounting systems and is a common standard in industrial and hobbyist automation.
• Precision Movement: Provides highly precise and reliable positioning, making it ideal for applications that require exact motion control.
• High Efficiency: Designed to operate efficiently, minimizing energy consumption while maximizing output performance.
• Smooth Operation: With a high pole count, the motor ensures smooth and accurate step movement, reducing mechanical vibrations.
• Wide Compatibility: Can be easily integrated with various stepper motor drivers and controllers, providing flexibility for different control systems.
• Durability: Built with high-quality materials for long-lasting durability and high performance under demanding loads.
• Low Maintenance: Stepper motors are generally low maintenance, offering long operational lifespans with minimal servicing required.
• Versatile Applications: Suitable for a wide range of automation and motion control tasks, including CNC machines, 3D printers, robotic arms, and precision machinery.

Specifications:

• Motor Type: 2-Phase Stepper Motor
• Frame Size: NEMA 23 (76mm or 2.99 inches)
• Rated Holding Torque: 18.9 kg·cm (approximately 264 oz·in)
• Step Angle: 1.8° per step (200 steps per revolution)
• Rated Current: Typically 2.8A per phase
• Resistance: 1.1Ω per phase
• Inductance: 4.0 mH per phase
• Operating Voltage: 3.5V to 5V (depending on the driver used)
• Shaft Diameter: 6.35mm (1/4 inch)
• Shaft Length: 22mm (approx.)
• Wiring Type: 4-wire connection (common for bipolar stepper motors)
• Weight: Approx. 1.4 kg (3.1 lbs)
• Mounting Hole Distance: 56.5mm (2.22 inches) – standard for NEMA 23 motors
• Max Speed: Typically up to 1000 RPM, depending on the load and controller
• Operating Temperature Range: -20°C to 50°C (-4°F to 122°F)

Applications:

• CNC Machines: Ideal for driving precise movement in CNC machines, milling machines, and other automated tools.
• 3D Printers: Commonly used in 3D printers for precise and controlled movements in the X, Y, and Z axes.
• Robotics: Perfect for robotics applications that require high torque and exact positioning.
• Automation Systems: Used in automated systems that require reliable and repeatable motion control.
• Industrial Equipment: Can be employed in conveyor belts, packaging systems, and other machinery requiring precision control.

This NEMA 23 Stepper Motor combines high torque, precision, and durability, making it an excellent choice for both hobbyist and professional applications that demand reliable motion control
