Sale!

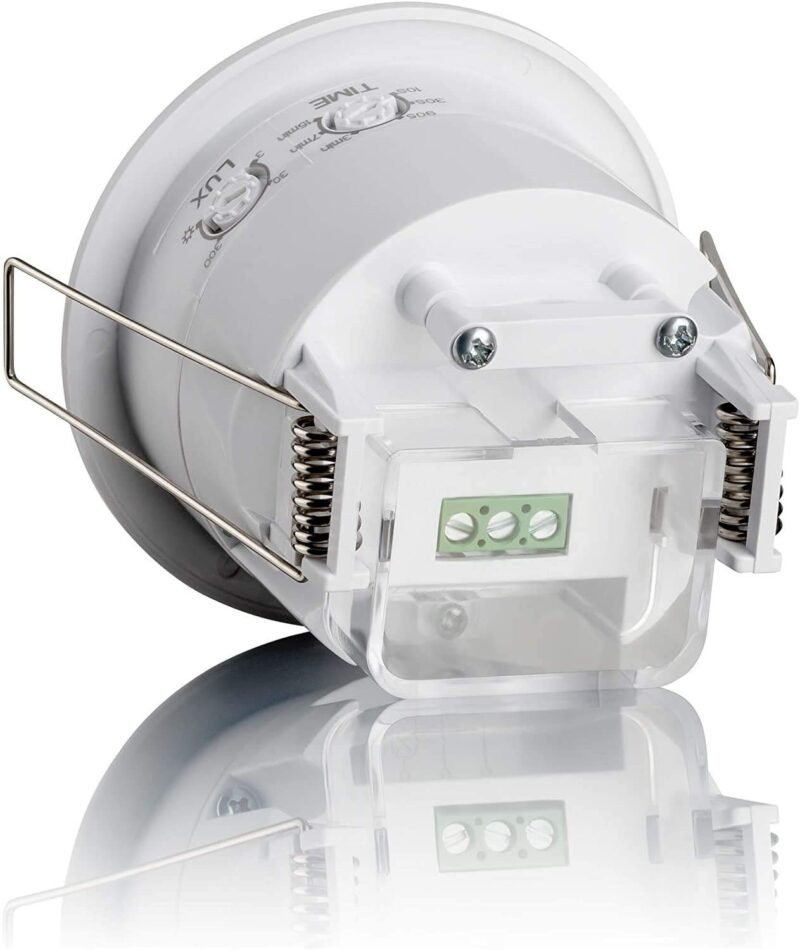

Fall/Recessed Ceiling Mounted Plastic Energy Saving PIR Motion Sensor Switch with Light Sensor (White) SWS07

₹599.00 ₹399.00

  1. 360-Degree Detection Range: TheFC Motion Sensor Switch has a 360-degree detection range, providing full coverage and ensuring that no motion goes undetected.
  2. Adjustable Time Delay: The time delay for the motion sensor switch is adjustable, with options ranging from 10 seconds to 7 minutes, allowing for flexibility in customization.
  3. Suitable for a Variety of Loads: The motion sensor switch is compatible with different types of loads, including incandescent lamps, LED lights, CFLs, and fans, with a maximum load capacity of 1200 watts.
  4. Adjustable Ambient Light: With an adjustable ambient light feature ranging from 3 to 2000, the FC Motion Sensor Switch can be customized to turn on lights only when it’s dark, conserving energy and enhancing convenience.
  5. High-Quality Performance: The FC Motion Sensor Switch has a detecting distance of up to 7 meters and motion detection speed of 0.6~1m/s, ensuring reliable and high-quality performance. 6
  6. Warranty: The 1FC Motion Sensor Switch comes with an 18-month manufacturer warranty, providing customers with peace of mind and assurance of quality.
Add to wishlist
Category: Tags: ,

Description

Fall/Recessed Ceiling Mounted Plastic Energy Saving PIR Motion Sensor Switch with Light Sensor (White) SWS07

he Product is new Energy Saving Device, it adopts good sensitivity detector, integrated ckt. It gathers automatism, convenience, Safety,Saving energy & physical functions. It works by receiving Human motion Infrared rays.

Now Switch ON/OFF your Lights, Bulb,CFL, etc by AUTOMATIC Use INFRARED PIR MOTION SENSOR Life: More than 5 years

PIR Sensor
USe

Use:

  • Home
  • Office
  • Shops
  • Hospitals
  • Bathroom
  • Corridor
  • Step
  • Parking area & etc
Fail Ceiling

Quality Control Standards:

  • Load power: Upto 300/1200W Max
  • Ambient Light: 3-2000 (Adjuestable)
  • Load type: Incandescent lamp, LED light, CLF, fans, etc
  • Detecting distance: 0~7M
  • Detecting Angle: 360 Degree.
  • Installation Height: 2.2-4 Mtr
  • Delay: 10 Seconds -7 Minutes (Adjustable), Motion Detection Speed: 0.6~1m/s
  • Power Consumption (static) & 0.4(Work)
  • Working Humidity: less than 93%RH

Use

Use_2

USe_3

Product Feature:

  • PIR Motion Sensor: Works by detecting human motion infrared rays
  • Light Sensor: 3LUX~2000LUX adjustable, Can work in day and night.
  • Time Delay: 10sec-7min adjustable, Time-Delay is added continually, when it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.
  • Detection Range: 3-7m adjustable, can be adjusted accordingly, item fits for large room.

Product Installations:

  1. Keep Sensor unit 1.6 Mtr higher from the ground level.
  2. The light, such as incandescent lamp which emits high heat should be kept from the switch aways, or it will be turn on/off voluntarily.
  3. On being fixed to the wire first time, the switch’ initialization will take 1-2 minutes. It’s natural for the switch to turn on/off voluntarily.
  4. When you install the switch on daytime, the Default State of the switch will make the light off.Keep the detector of the switch from illumination, & then the light will turn ON. The darker, the switch will be more sensitive. If it is not very sensitive, turn the yellow port counterclockwise with a long and thin tool to get a proper light sensitivity.
