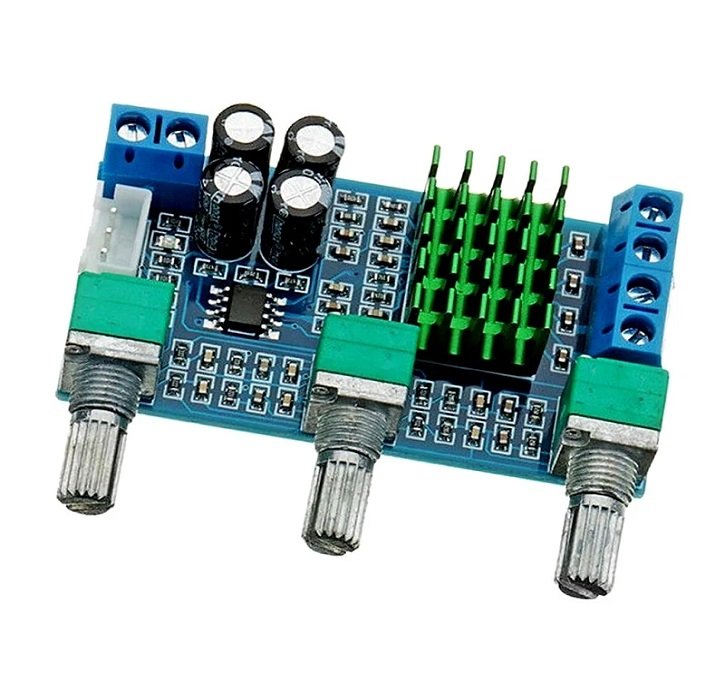

TPA3116D2 12-24 V DC 2CHX80W AD POWER AMPLIFIER BOARD M567
The TPA3116D2 2-Channel Power Amplifier Board is a high-efficiency Class D audio amplifier designed to deliver up to 80W per channel of power to drive 4Ω speakers. Operating on a DC 12V to 24V input, this compact board offers low distortion, high-fidelity sound, and high energy efficiency, making it ideal for both home audio systems and DIY audio projects.
With the advanced TPA3116D2 chipset, this amplifier board ensures excellent sound performance and minimal heat generation, thanks to its Class D technology. Its compact design and simple wiring make it easy to integrate into custom audio systems or upgrade existing setups, while its powerful output suits various applications, from home speakers to car audio.
Key Features:
- 80W per Channel (RMS): Delivers 80W of power per channel at 4Ω speakers, providing clear, robust sound for home audio systems or DIY projects.
- Class D Amplification: Offers high power efficiency, low heat production, and low distortion for high-quality audio output.
- Wide Voltage Range: Operates with DC 12V to 24V input, providing flexibility to power from a variety of sources.
- High Fidelity Sound: Ensures clear and crisp audio with low Total Harmonic Distortion (THD ≤ 0.1%) and high signal-to-noise ratio (SNR).
- Compact Design: Small form factor (90mm x 60mm) makes it easy to integrate into custom audio setups without occupying much space.
- Speaker Compatibility: Works with 4Ω and 8Ω speakers, making it suitable for a variety of audio applications.
- Low Power Consumption: Energy-efficient design minimizes power usage, ideal for extended operation without excessive power draw.
- Thermal Protection: Built-in over-temperature protection for safe, reliable operation during long-term use.
- Simple Integration: Features easy-to-connect terminals and simple wiring for quick installation in DIY projects or audio systems.
Specifications:
- Amplifier Type: Class D Digital Power Amplifier
- Output Power: 80W per channel (RMS) at 4Ω speakers
- Input Voltage: DC 12V to 24V (Recommended 18V to 24V for optimal performance)
- Frequency Response: 20Hz – 20kHz
- Total Harmonic Distortion (THD): ≤ 0.1%
- Signal-to-Noise Ratio (SNR): ≥ 90dB
- Speaker Impedance: Compatible with 4Ω and 8Ω speakers
- Size: Approx. 90mm x 60mm
- Weight: Approx. 100g
- Power Consumption: Low energy consumption for long-term, efficient use
Applications:
- Home Audio Systems: Ideal for high-quality audio in home theater or stereo systems.
- DIY Audio Projects: Perfect for custom audio amplifiers in DIY speaker builds, robotics projects, or portable audio systems.
- Car Audio Systems: Great for adding high-powered amplification to in-car audio systems.
- Portable Speakers: Suitable for battery-operated, high-power portable speaker setups.
- Public Address Systems: Can be used in PA systems for delivering clear, amplified sound.
