KIT ECG MEASUREMENT AD8232

Description

The KIT ECG Measurement Module is a compact and reliable solution designed to measure and monitor the electrical activity of the human heart. Using advanced biopotential amplification technology, it provides accurate ECG (Electrocardiogram) readings, making it ideal for biomedical projects, health monitoring systems, and wearable devices. This module interfaces easily with microcontrollers like Arduino, Raspberry Pi, and other development boards, allowing users to record and visualize ECG waveforms for analysis and experimentation.

Features:

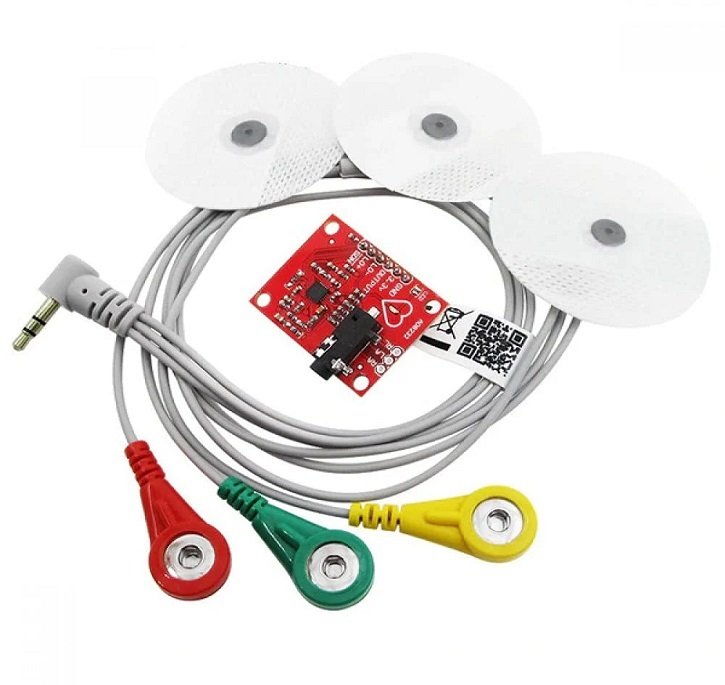

AD8232 adopts double poles high-pass filter to eliminate the motion artifacts and electrode half-cell potential Rated temp range : 0-70degree  Working temp range: -40-85degree  Material:  Plastic  Size: 35 x 27 x 3mm  Color: Red This is Heart Rate Monitor Kit with AD8232 ECG sensor module good quality.

The AD8232 is an integrated signal conditioning block for ECG and other bio potential measurement applications. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development board

Specifications:

Operating Voltage: 3.3V – 5V DC Output Type: Analog signal output

Signal Gain: Configurable for optimal ECG signal capture Interface: 3-electrode input (Left Arm, Right Arm, Right Leg)

Operating Temperature: -10°C to +50°C
