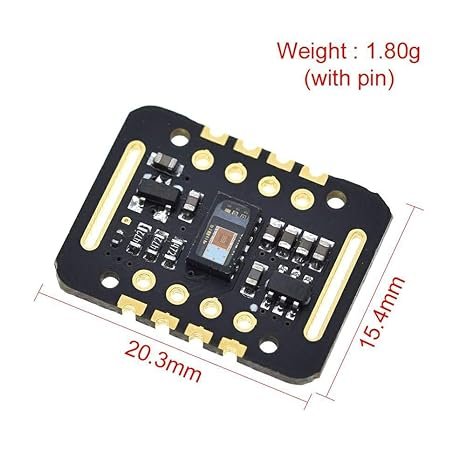

Description
The Oximeter MAX30102 is an advanced pulse oximeter and heart rate sensor module that combines high accuracy and low power consumption. It uses integrated red and infrared LEDs, photodetector, and optimized optics to measure oxygen saturation (SpO₂) and pulse rate through fingertip or earlobe detection. Designed for health monitoring and wearable applications, the MAX30102 provides reliable data output via the I2C interface, making it ideal for Arduino, Raspberry Pi, and other microcontroller-based projects.
Features:
The MAX30102 is an integrated pulse oximeter and heart rate monitor bio sensor module. It integrates a red LED and an infrared LED, photo detector, optical components, and low-noise electronic circuitry with ambient light suppression.
The MAX30102 features a 1.8V power supply and a separate 5.0V power supply for internal LEDs for heart rate and blood oxygen acquisition in wearable devices, worn on the fingers, earlobe, and wrist.
Specifications:
Model: MAX30102 Supply Voltage: 1.8V to 5V DC

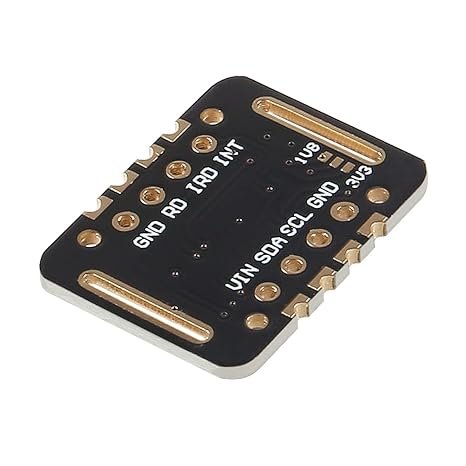

Interface: I2C Operating Current: < 600µA (typical)
Measurement Parameters: Heart Rate, SpO₂
Wavelengths: Red (660nm) and IR (880nm)
