Description

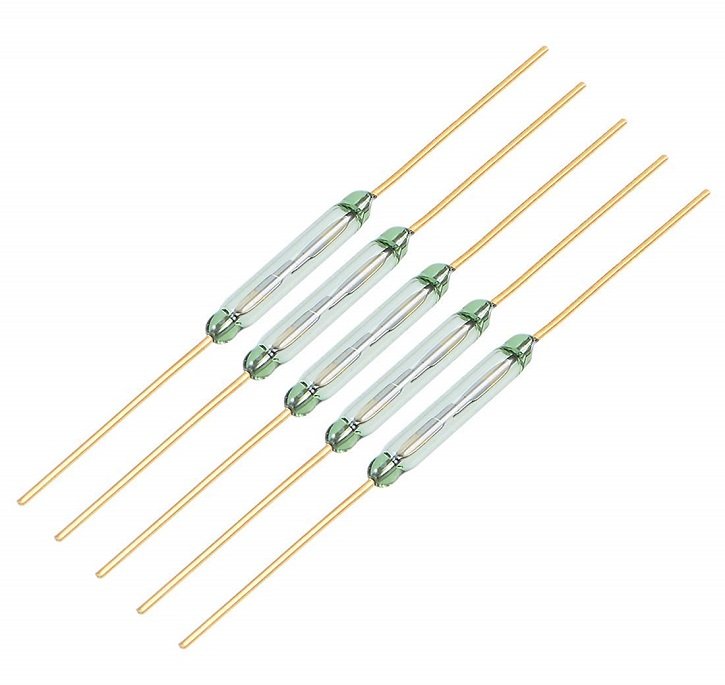

The Reed Switch 2 x 14 mm Normally Open (NO) is a compact magnetic switch that operates by opening or closing its contacts in the presence of a magnetic field. This switch is highly reliable, durable, and ideal for low-current applications. It is commonly used in security systems, door/window sensors, proximity detection, robotics, and magnetic counters. With its simple design and high sensitivity, the reed switch provides efficient performance and long operational life.
Features:
Compact 2 x 14 mm glass-sealed design for durability Normally Open (NO) type — closes when exposed to a magnetic field
High reliability and fast response time Suitable for AC and DC circuits Long mechanical and electrical life
Easy to integrate with microcontrollers and automation systems
Specifications:
Small Module. Very easy to use. Glass Length: 14mm
Glass Diameter: 2mm Total Length: 45mm
Max. Switching Voltage: 300 VDC Min. Breakdown Voltage: 150 VDC
Max. Contact Rating: 10W Max. Switching Current: 0.55 A Max. Operate time: 0.45 ms
