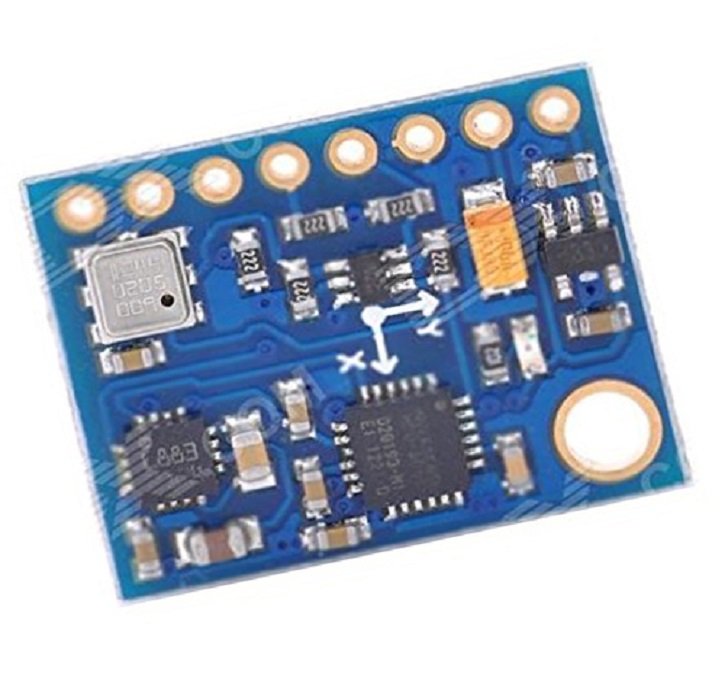

GY-87 MODULE MPU6050 HM5883L BMP180 SENSOR 10DOF

Description

The GY-87 Module is an all-in-one 9-axis motion sensor and environmental sensing board that combines the MPU6050 (3-axis accelerometer + 3-axis gyroscope), HMC5883L (3-axis magnetometer/compass), and BMP180 (barometric pressure and temperature sensor). This versatile module is designed for advanced motion tracking, altitude measurement, navigation, and environmental monitoring. It communicates via I2C interface, making it easy to integrate with Arduino, Raspberry Pi, and other microcontrollers. Perfect for applications like drones, robotics, weather stations, and navigation systems, the GY-87 provides precise data on acceleration, angular velocity, magnetic field, pressure, and temperature.

Features:

All-in-one sensor module with accelerometer, gyroscope, magnetometer, and barometric sensor. Provides accurate 9-axis motion data for precise orientation and navigation. Measures barometric pressure and altitude with high accuracy.

CoGY-87 MODULE MPU6050 HM5883L BMP180 SENSOR

mpact and lightweight design ideal for drones, robots, and wearable devices. Easy integration with microcontrollers using I2C communication. Low power consumption suitable for battery-operated projects.

Specifications:

Accelerometer + Gyroscope: MPU6050 (3-axis each)  Magnetometer: HMC5883L (3-axis)

Barometric Sensor: BMP180 Communication Interface: I2C

Operating Voltage: 3V – 5V DC Pressure Range (BMP180): 300 – 1100 hPa

Temperature Range: -40°C to +85°C
