150W Step UP DC-DC 10-32V TO 12-35V Step UP Voltage Charger Module NA065

Description

150W Step UP DC-DC 10- 32V TO 12-35V Step Up Voltage Charger Module NA065

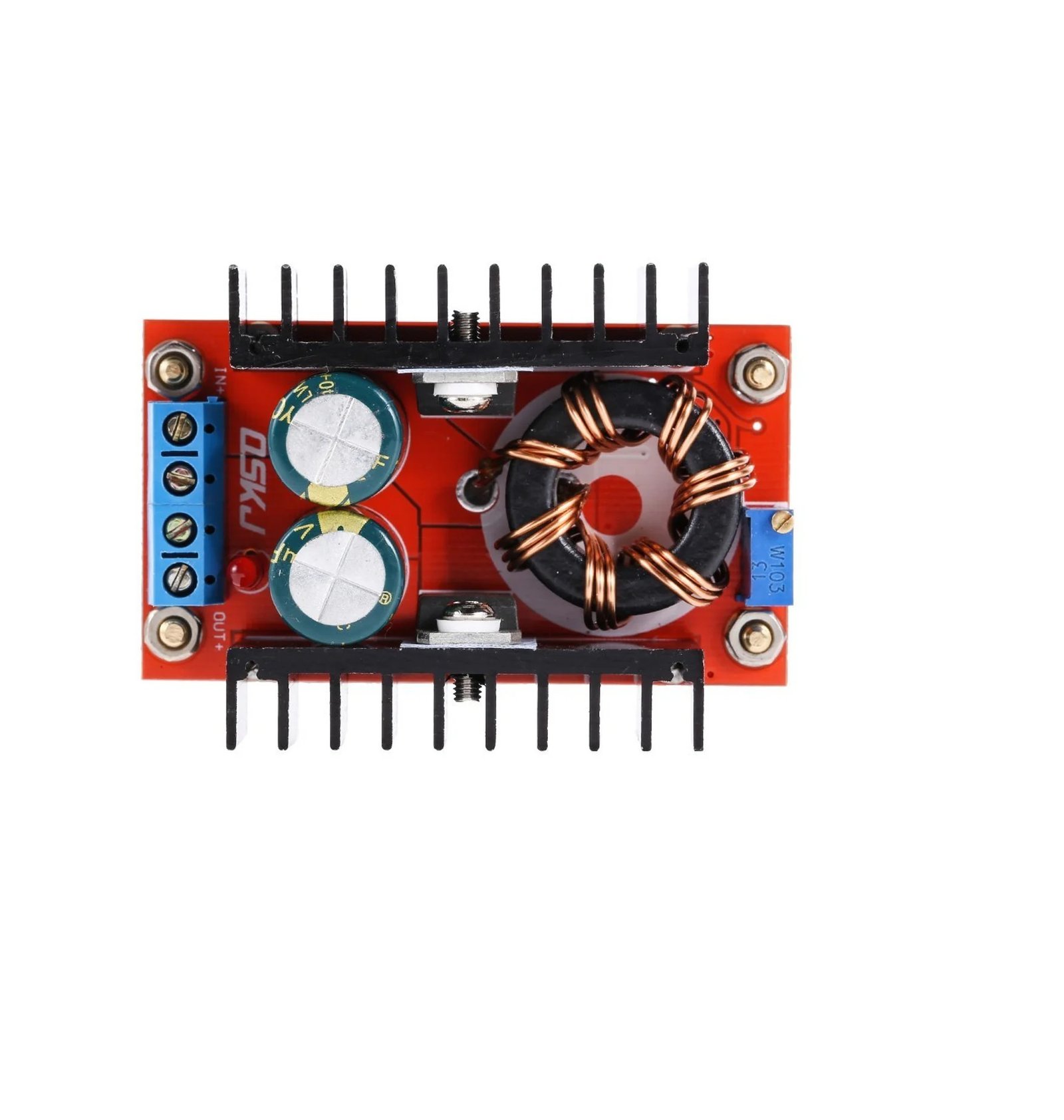

The 150W Step up converter Module allows you to step up DC DC input voltage as low as 10V to upto 35V, with output current as high as 6A. As its a step up module, the output will always be higher than the input voltage. This module is based on the Texas Intsruments’ UC3844 Current Mode PWM Controller Chip.

The output voltage of the 150W Step Up Module is adjustable by using the onboard multi turn potentiometer. Extra heatsink or other cooling method is recommended when the output is more than 50W. Its specially used in automotive applications where the Battery 12V needs to stepped up to 18V, 24V or any other level.

NOTE: This Step Up Module does not include short circuit protection, users need to add fuse at the input.

• Non isolated Step Up Power Converter
• Input Voltage Range: 10 V ~ 32 V DC
• Output Voltage Range: 12 V ~ 35 V DC
• Max Output Current: 6 A
• Output Ripple: 2% Max
• Working Temperature: Industrial Range -40° to +85° C
• DIY adjustable output vehicle power supply. Provide 12V input, the output voltage can be continuously adjusted from 14V to 35V (output voltage cannot be lower than the input voltage).
• Universal car laptop power supply. Provide 12V input, the output voltage is adjustable to your notebook to work. Can easily drive dual-core or quad-core notebooks at 19V and up to 6A output current.
• Boost Charger, to convert your car’s 12V power to greater than 12V, such as 18V or 24V
• Power supply for your electronic devices, as long as the voltage is adjusted to the voltage and does not exceed the module’s rated current.
