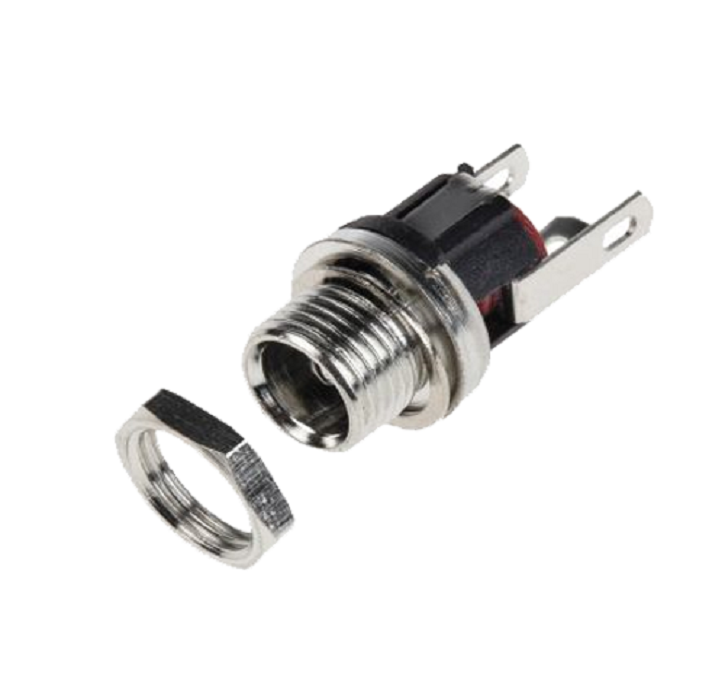

DC Socket Round Metal (5.5″2.1) “DC-025M” JX1741M (pack of 5)
- DC Power Jakc Male Connector Full Metal – Soldering type Panel or screw mount
- Materials: Tube & Pin both zinc alloy; Plastic is PBT (Black); Plating: Nickel Plated
- Rating: 6A to 8A Contact Rating: 10A@5V; 8A@12VDC; 5A@48VDC
- Salt Spray Test Time: 12 hours to 72 hours; WITHSTAND VOLTAGE:AC 500V(50HZ)min;
- Overall Length: 30mm; Outer Diameter:5.5mm; Pin Diameter:2.1mm; Case length needed: 35mm
- INSERTION FORCE: 3-20N; LIFE: 5000 TIMES; CONTACT RESISTANCE: ≤ 0.03Ω; INSULATION RESISTANCE: ≥100MΩ
