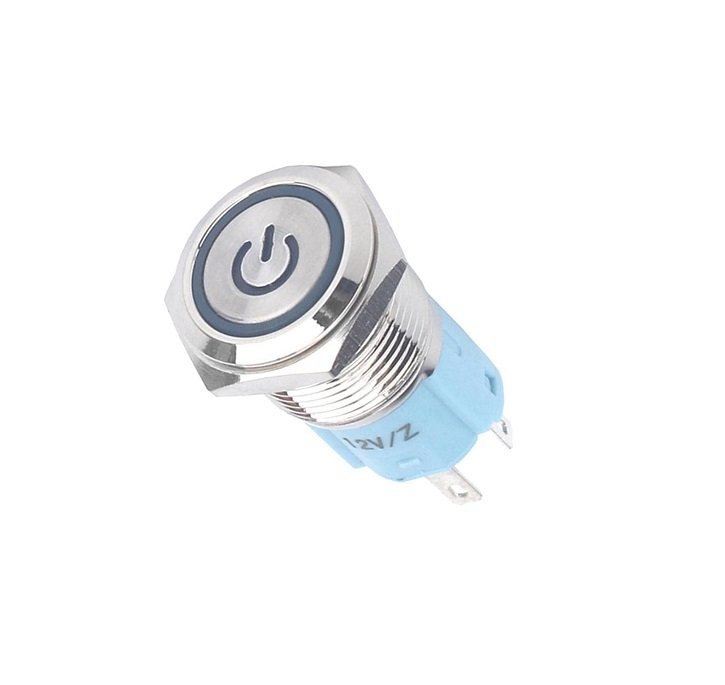

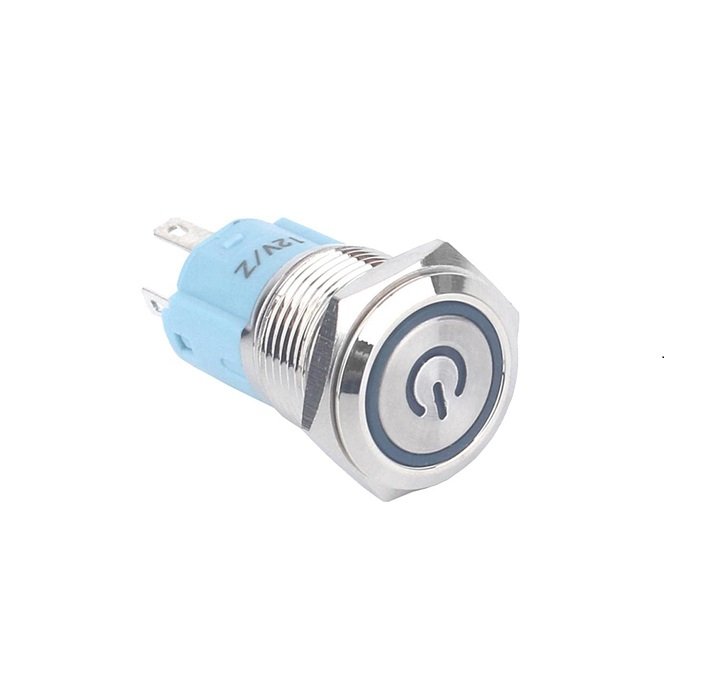

16mm 12V Metal Self-reset/Latching LED Push Button Switch

Description

16mm 12V Metal Self-reset/Latching LED Push Button Switch

Description: The 16mm 12V Metal Self-reset/Latching LED Push Button Switch is a durable and versatile switch designed for a variety of applications, from industrial machinery to custom DIY electronics projects. Featuring a sleek metal construction and a built-in LED indicator, this push button switch offers both functionality and visual appeal. It operates with a 12V DC power supply and offers both self-reset and latching modes, making it suitable for a wide range of uses such as control panels, automotive systems, and more.

The switch is easy to install, with a standard 16mm mounting hole, and provides a reliable and responsive push-button action. The LED light enhances visibility, offering clear feedback when the switch is activated. Whether you need to turn something on/off, control circuits, or provide an indicator for various systems, this push button switch ensures a solid and long-lasting performance.

Features:

• Metal Construction: High-quality metal material for durability and a premium look and feel.
• LED Indicator: Built-in LED for visual feedback and better visibility in low-light conditions.
• Self-reset and Latching Modes: Offers both self-reset and latching functions to accommodate different control needs.
• Compact Design: 16mm diameter is ideal for tight spaces and standard panel installations.
• 12V DC Operating Voltage: Suitable for 12V DC electrical systems.
• IP65 Rating: Offers some resistance against water and dust, making it ideal for use in outdoor and rugged environments.
• Long Lifespan: Rated for over 1 million press cycles for longevity and reliability.

Specifications:

• Size: 16mm diameter (mounting hole size)
• Voltage: 12V DC
• Current Rating: 2A
• Material: Metal body
• LED Color: Available in various colors (typically red, blue, or green)
• Switch Type: Self-reset and latching modes
• LED Type: Standard LED
• Mounting Type: Panel mount
• IP Rating: IP65 (Waterproof and dustproof)
• Operating Temperature: -25°C to +55°C
• Life Cycle: Over 1 million operations
• Contact Type: Momentary or latching, depending on model

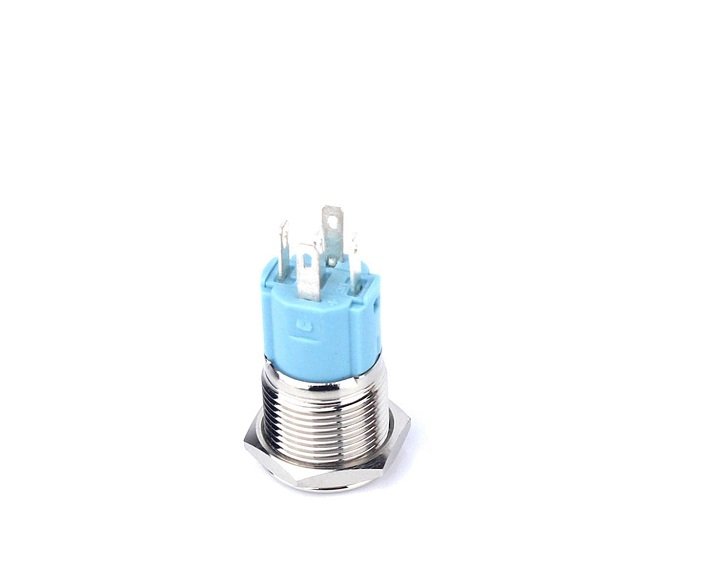

• Wire Type: 2 or 3 pins for easy connection

This push button switch is the perfect combination of function and style, with a long-lasting design that can withstand both everyday use and harsh environments. Whether for electronics, automotive, or DIY projects, this switch offers a reliable, high-quality solution.
