Description
The SS-22F32G8 Mini Slide Switch is a compact, durable 2P2W (Double Pole, Double Throw) switch designed for precise and reliable operation in a wide range of low-voltage electronic circuits. With its compact form factor and through-hole PCB mounting design, this switch is ideal for space-constrained applications such as consumer electronics, embedded systems, development boards, and DIY projects.
Its smooth slide mechanism, long mechanical life, and solid build quality make it a preferred choice for mode selection, signal switching, and circuit routing.
Key Features
2P2W (DPDT) Configuration
Double Pole Double Throw switch offers two circuits with two selectable positions—ideal for routing or switching applications.
Miniature Size
Compact and lightweight for use in tight spaces or dense PCB layouts. Smooth Slide Operation
Provides tactile and reliable switching action with firm contact engagement.

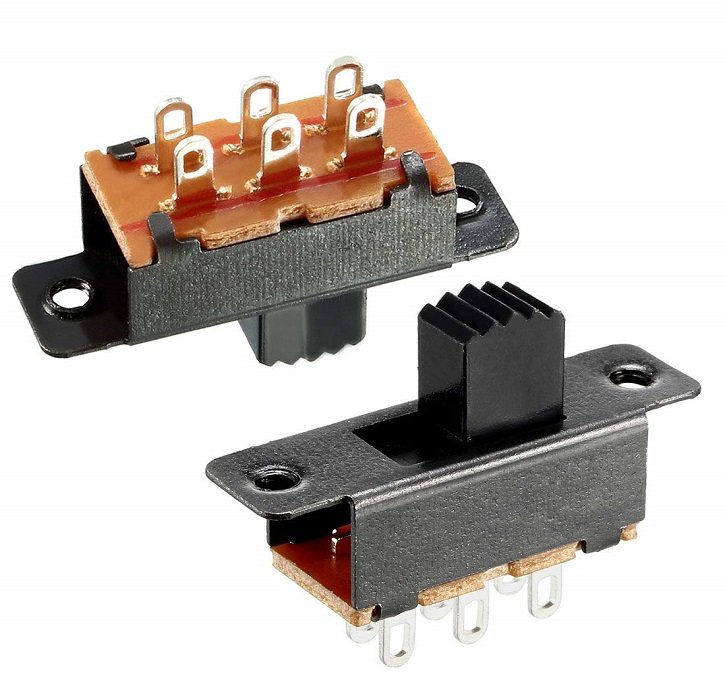

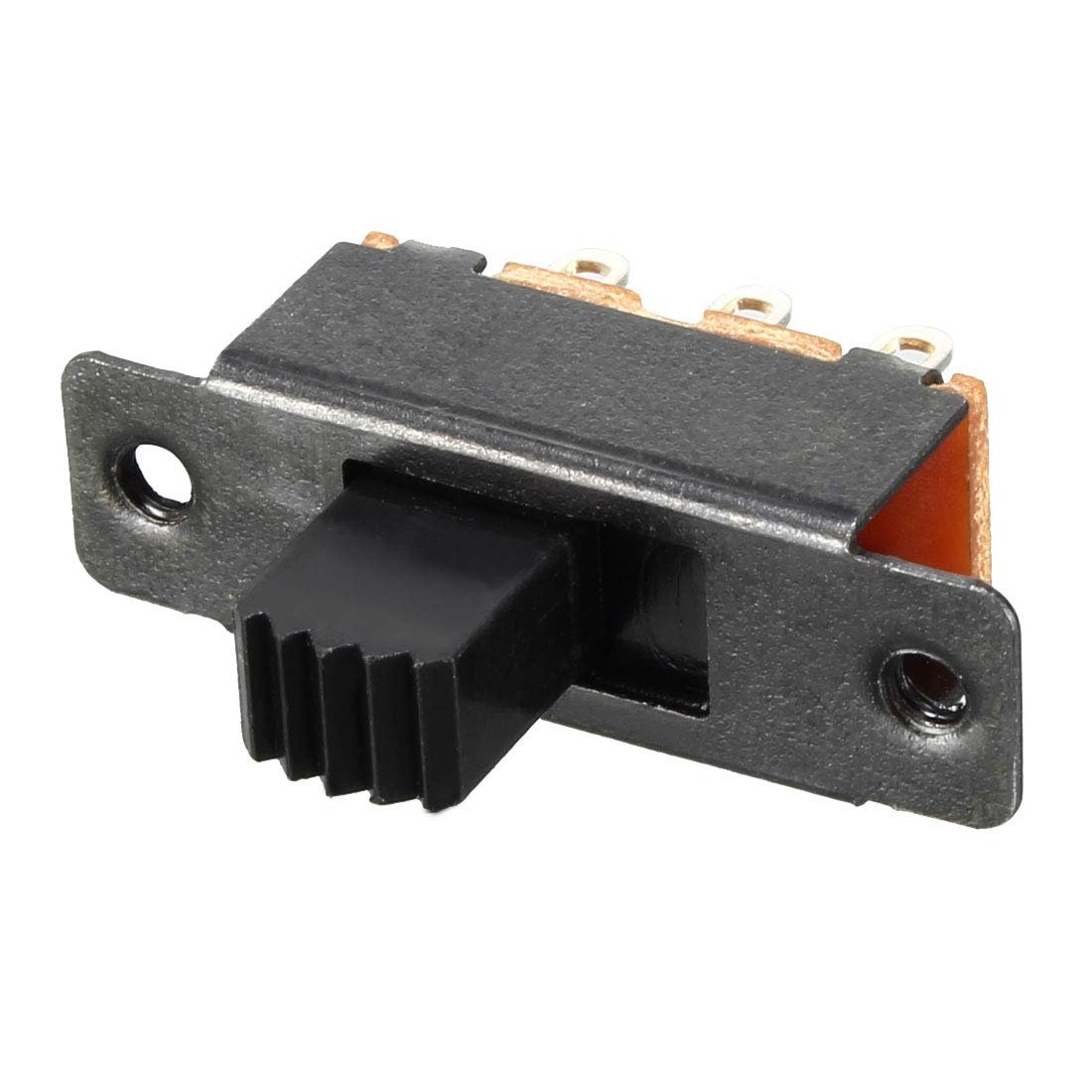

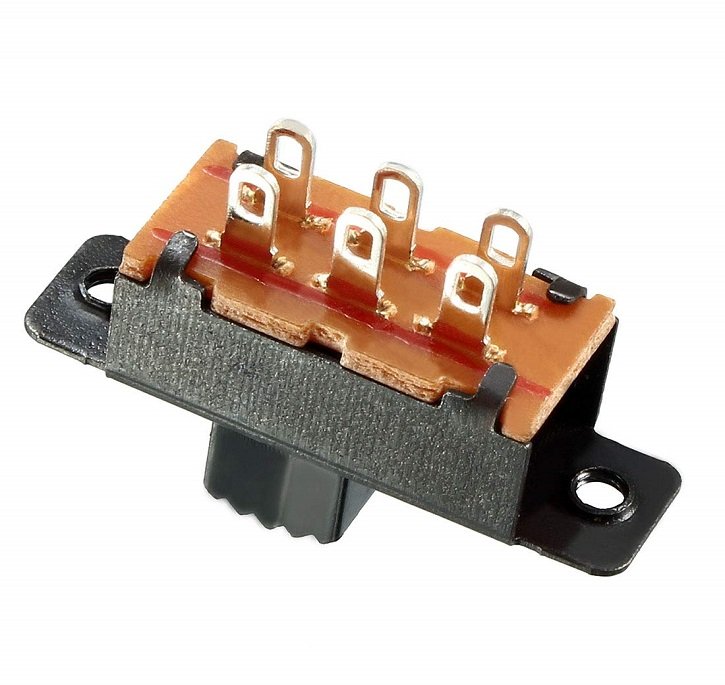

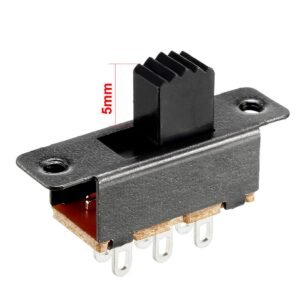

SLIDE SWITCH MINI SS-22F32G8
PCB Mountable
Designed for secure and permanent installation on standard PCBs using through-hole soldering. Long Mechanical Life
Built for high durability, capable of withstanding thousands of operation cycles.
RoHS Compliant
Made from environmentally friendly, lead-free materials.
Specifications
Model SS-22F32G8 Switch Type Slide Switch
Configuration 2P2W (DPDT – Double Pole, Double Throw)
Rated Current 0.3A @ 50V DC / 0.5A @ 12V DC
Operating Temperature -20°C to +70°C
Applications
Signal routing in electronics circuits
Mode selection in embedded systems
DIY electronics and hobby kits
Development boards and microcontroller projects
Compact consumer electronics and audio devices
