Description

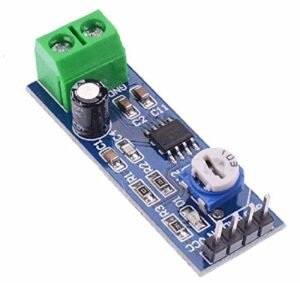

This LM386 module is a low-cost audio amplifier module with the famous on it. The gain of LM386 amplifier IC the circuit is about 200 that means the output can be amplified 200 times. The operating voltage of the module is from 5V to12V. It also has an on-board power indicator LED and a 10k potentiometer which can be used to adjust the volume (gain) of the output audio signal. If you are looking for a stereo Amplifier check out the PAM8043 Stereo Amplifier Module.
The LM386 Audio Amplifier IC operates on a voltage range between 4 V and 12 V. It has an absolute maximum rating of 15 V. It has a dissipation rating of 0.73 W.
FEATURES & SPECIFICATIONS
- Signal Gain 200 (multiplier)
- On-board LM386 Chip
- On-board speaker wiring Block
- Wide supply voltage range: 5 V to 12 V DC
- Low distortion
- On-board LED for the power indicator
- Volume Control 10 k Ω preset
- Screw Terminal for speaker output connection
- Board size Approx. 41 mm × 13 mm
PACKAGE CONTENTS
1×LM386 Audio Amplifier Module
