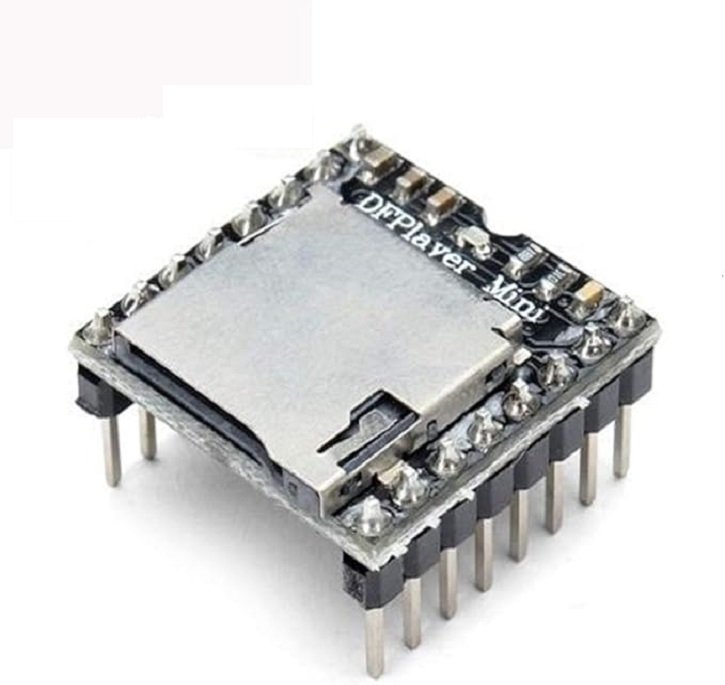

MP3-TF-16P DISK TF CARD MODULE SERIAL PORT MP3M2

199.00 129.00

Compact MP3 audio playback module that reads files from a TF (microSD) card and is controlled via a serial (UART) interface.

Description

MP3-TF-16P MP3 Disk TF Card Module (Serial Port)

The MP3-TF-16P is a compact and easy-to-use MP3 audio playback module that reads audio files from a TF (microSD) card and plays them via simple serial commands. Designed for integration into embedded systems, it’s perfect for adding sound or music to DIY electronics, Arduino projects, and industrial control systems.

Key Features:

TF Card Support:Plays MP3 files directly from a microSD (TF) card (FAT16/FAT32 format, up to 32GB). UART Serial Control:Easy-to-use serial commands for controlling playback, volume, track selection, and more.

Built-in MP3 Decoder:Supports high-quality MP3 decoding and playback, with minimal external components required. Loop and Random Play:Built-in functions for loop mode, single-track play, and random playback.

Compact Design:Small form factor with 16-pin interface for easy integration into custom PCBs or breadboards. Low Power Consumption:Efficient design suitable for battery-powered and portable applications.

MP3-TF-16P DISK TF CARD MODULE SERIAL PORT MP3M2

Multiple control modes: a variety of control modes are available. IO control, serial port, AD button control mode.

Specifications:

Model:  MP3-TF-16P Storage Medium: TF (microSD) card (≤32GB)

Supported Formats: MP3 (up to 320 kbps) File System: FAT16 / FAT32

Control Interface: UART Serial (9600 bps default) Operating Temp: -20°C to +70°C

Power Supply: DC 3.2V – 5V Current Consumption:  <30mA (typical)

Dimensions: ~40mm x 22mm  Pin Header:  16-pin standard header
