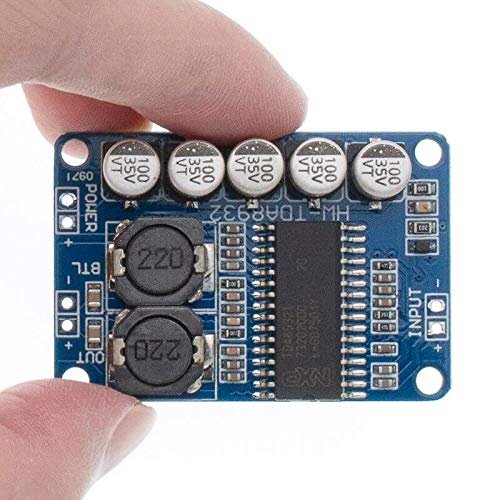

TDA8932 Digital Power Amplifier Board – 35W Mono
The TDA8932 Mono Digital Power Amplifier Board is a compact and energy-efficient audio solution designed to deliver 35W of clean, high-quality output. Built around the reliable TDA8932 Class D amplifier chip, this board is perfect for DIY audio projects, portable speaker systems, and embedded audio applications.
With its low heat generation, wide voltage range, and minimal distortion, the T8932 board combines performance and efficiency in a small footprint—making it ideal for hobbyists and developers alike.
Key Features:
35W RMS Output (Mono): High-quality mono output, ideal for small speakers or subwoofers.
Efficient Class D Technology: Class D architecture ensures low power loss and minimal heat, even at high volumes.
Wide Voltage Support: Operates from 10V to 30V DC, allowing flexibility for various power supply options.
Low THD (Total Harmonic Distortion): Produces crisp, distortion-free sound, perfect for music playback or voice applications.
TDA8932 Digital Power Amp Board – 35W Mono
Compact PCB Design: Small size makes it easy to integrate into custom enclosures, portable speakers, or embedded systems.
TDA8932 digital amplifier board module, using high quality materials, with high power, low power consumption characteristics.
Specifications:
Amplifier Type: Class D Mono Amplifier IC: TDA8932
Output Power: Up to 35W RMS Operating Voltage: DC 10V – 30V
Efficiency: UP to 90% THD+N: < 0.1% @ 1kHz
Frequency Response: 20Hz – 20kHz Input Impedance: ~22kΩ
Dimensions Approx. 40mm x 35mm x 15mm
Protection Features Overcurrent, short-circuit, thermal
