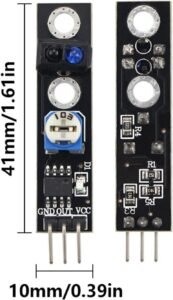

TCRT5000 IR TRACKING SENSOR MODULE 3 PIN T5000L

₹199.00 ₹99.00

  1. Main chip : LM393,
  2. Designed with reflected infrared sensor, indicator light.
  3. Built in a potentiometer for sensitivity control.
  4. On-board LM393 voltage comparator chip and infrared sensing probe TCRT5000L
  5. Support 5 V / 3.5 V voltage input
  6. On-board signal output instructions, output is high effective signal at the same time, the indicator lamp light  output signal can be directly and single-chip microcomputer IO connection & middot;
  7. Signal detection sensitivity can adjust
  8. Reserve all the way more circuits (P3 voltage drawn)
  9. using TCRT5000 infrared reflection sensor
  10. test reflection distance : 1 mm to 25 mm
  11. Operation voltage : 3.5v-5V
  12. Operation current : >15mA
  13. Wide voltage LM393 comparator
  14. Output form : digital switch output (0 and 1)
  15.  A fixed bolt hole, convenient installation.
Add to wishlist
SKU: T5000L Category: Tags: ,

Description

TCRT5000 IR TRACKING SENSOR MODULE 3 PIN T5000L

  1. Product Name : Infrared Obstacle Avoidance Sensor Module; Module Model : TCRT5000;Working Voltage : DC 3.5-5V
  2. Output Channel : 0/1; Detect Distance : 1-25mm; Focal Distance : 2.5mm
  3. Chipset : LM393;PCB Size : 32 x 14mm/1.3″ x 0.55″ (L*W)
  4.  Total Size : 38 x 14 x 18mm/1.5″ x 0.55″ x 0.7″(L*W*H);Material : Electric Part
  5.  Net Weight : 3g;Package Content : 1 x Infrared Obstacle Avoidance Sensor Module.
