Sale!

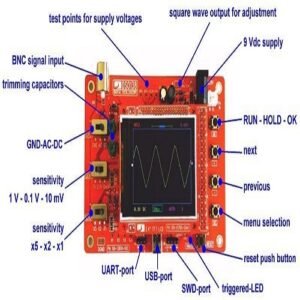

2.4″ TFT Pocket Size Digital Oscilloscope Kit DIY DSO138

₹2,999.00 ₹1,999.00

  1. This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch colour TFT display screen.
  2. Adjustable vertical displacement, and with instructions.
  3. With automatic, regular and one-shot modes, easy to capture the moment waveform.
  4. Available rising or falling edge trigger.
  5. Observable previous trigger waveform (negative delay).
  6. Can freeze at any time waveform display (the HOLD function).
  7. Maximum Real-time Sampling Rate: 1Msps
  8. Accuracy: 12Bit
  9. Sampling Buffer Depth: 1024 bytes
  10. Analog Bandwidth: 0-200KHz
Add to wishlist
SKU: DSO138 Category: Tags: ,

Description

2.4″ TFT Pocket Size Digital Oscilloscope Kit DIY DSO138

  1. This is DSO138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope Kit. This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen.
  2. It’s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
  3. This boost converter is a great match for DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included), make DSO138 oscilloscope to be a portable oscilloscope for better use.
