Description

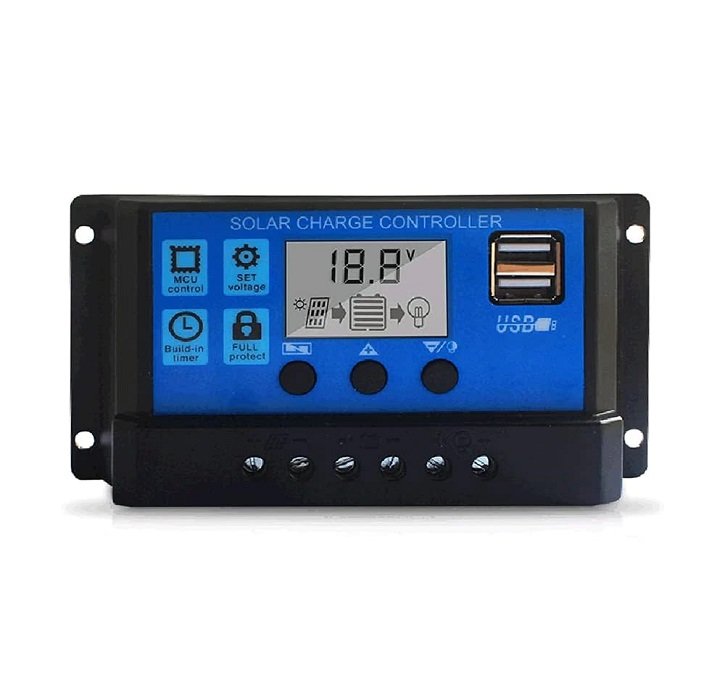

The 10A Solar Charge Controller is a compact, high-performance device designed to manage energy from your solar panels to your batteries safely and efficiently. Ideal for small to medium off-grid solar systems, this controller ensures optimal battery charging while protecting against overcharging, over-discharging, and short circuits.
Key Features:-10A Maximum Current Capacity
Supports solar panels up to 120W (12V) or 240W (24V) – perfect for small to mid-sized systems.
12V/24V Auto Recognition
Automatically detects system voltage and adjusts operation accordingly.

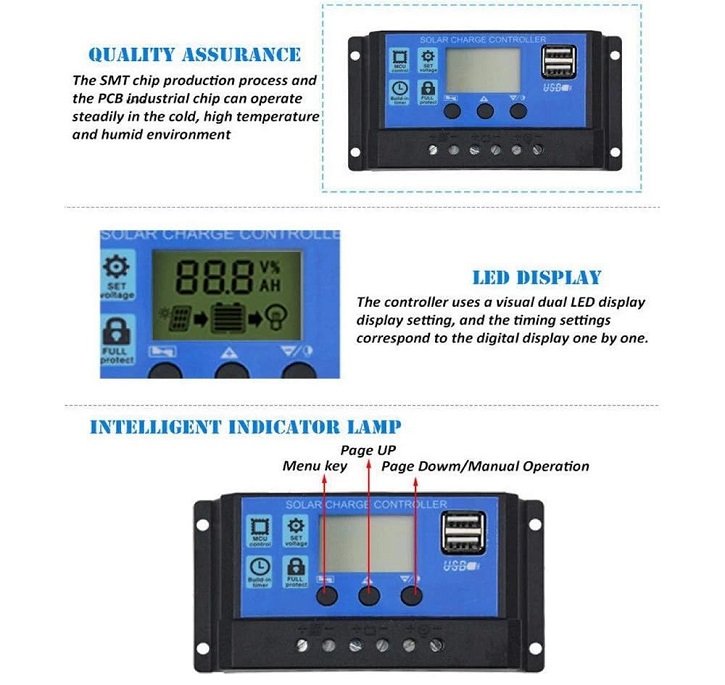

LCD Display (Optional)
Real-time display of system status, voltage, charge level, and fault indicators.
Multiple Protection Modes
Safeguards your system with overcharge, over-discharge, overload, reverse polarity, and short circuit protection.

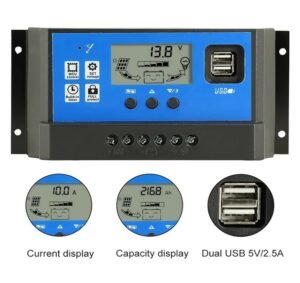

Dual USB Output Ports
Convenient USB charging for phones and small devices directly from the controller.
Specifications:-
ModelSolar Charge Controller 10A Rated Current 10 Amps System Voltage 12V / 24V Auto Select
Max Solar Input Voltage 50V (for 24V system)
Max PV Input Power 120W (12V) / 240W (24V)
Operating Temperature -20°C to +50°C

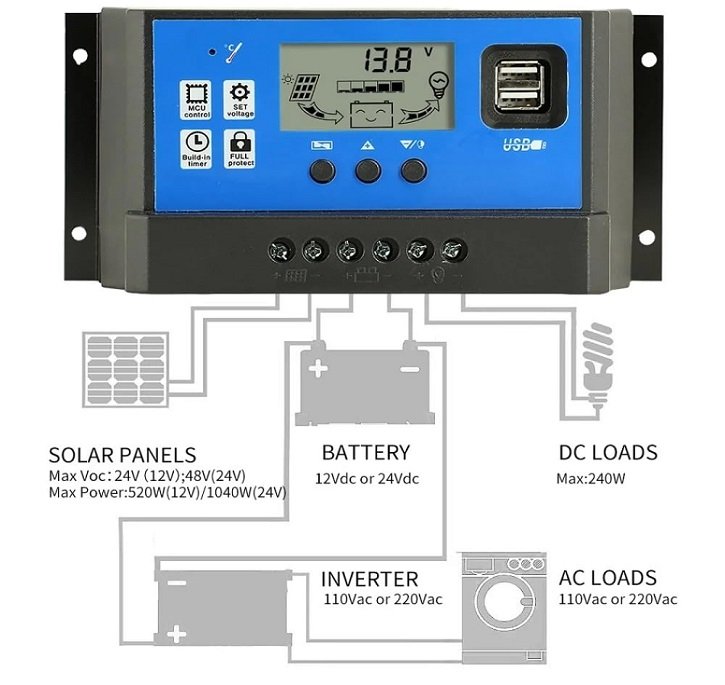

Applications:
Off-grid solar systems
RVs, campers, and boats
Small solar lighting setups
Solar-powered surveillance systems
DIY solar kits
