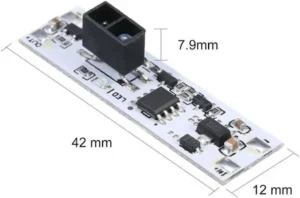

36W 3A Short Distance IR Hand Sweep On-Off Sen HANDS

Description

36W 3A Short Distance IR Hand Sweep On-Off Sen HANDS

Specifications：

Model: XK-GK-4010A
Operating voltage:
Input: 12 V
output: 12 V
Output type: Double output
Detection range: adjustable 10-50 MM
Detection principle: distance
Power load: 36 W
Delayed off time: none
Field of application: DC, constant pressure
Load current: 3A optional
Standby current: 10mA
VIN: 12V

Instructions:

AC use: Need to apply reactive rectifier for it is DC, constant pressure.
During installation, make sure that the medium insulation and tactile surface are tightly coupled and fixed!
There shoule no gap! Installed and then power, wait 3 seconds after initialization, it may be normal operation!
Recommended method of installation:
The first, the shell design a card slot, the touch button can be put in firmly locked.
The second, the use of hot melt adhesives, the touch button and shell close to the adhesive hot melt can be used to live.
The third, the use of double-sided adhesive, directly touch the stickers inside the shell.
